TC-40H
X Travel 40”
Y Travel 29”
Z Travel 26”
Table Size 60” x 24”
TC-80H
X Travel 80”
Y Travel 24”
Z Travel 24” (32”)
Table Size 80” x 24”
TC-120H
X Travel 120”
Y Travel 24”
Z Travel 24” (32”)
Table Size 120” x 24”
TC-160H
X Travel 160”
Y Travel 24”
Z Travel 24” (32”)
Table Size 160” x 24”
TC-240H
X Travel 240”
Y Travel 24”
Z Travel 24” (32”)
Table Size 240” x 24”
TC-320H
X Travel 320”
Y Travel 24”
Z Travel 24” (32”)
Table Size 320” x 24”
TC-40V
X Travel 40”
Y Travel 26”
Z Travel 28”
Table Size 60” x 24”
TC-80V
X Travel 80”
Y Travel 24” (32”)
Z Travel 24”
Table Size 80” x 24”
TC-120V
X Travel 120”
Y Travel 24” (32”)
Z Travel 24”
Table Size 120” x 24”
TC-160V
X Travel 160”
Y Travel 24” (32”)
Z Travel 24”
Table Size 160” x 24”
TC-240V
X Travel 240”
Y Travel 24” (32”)
Z Travel 24”
Table Size 240” x 24”
TC-320V
X Travel 320”
Y Travel 24” (32”)
Z Travel 24”
Table Size 320” x 24”
MC-30B
X Axis 30”
Y Axis 18”
Z Axis 22”
MC-40B
X Axis 40”
Y Axis 20”
Z Axis 28”
MC-45B
X Axis 45”
Y Axis 25”
Z Axis 25”
MC-60B
X Axis 60”
Y Axis 30” (35”)
Z Axis 28” (38”)
MC-80B
X Axis 80”
Y Axis 35” (40”)
Z Axis 30” (34”)
MC-100B
X Axis 100”
Y Axis 35” (40”)
Z Axis 30” (34”)
MC-24L
X Axis 24”
Y Axis 20”
Z Axis 20”
MC-30L
X Axis 30”
Y Axis 20”
Z Axis 20”
MC-40L
X Axis 40”
Y Axis 22”
Z Axis 22”
MC-45L
X Axis 45”
Y Axis 25”
Z Axis 25”
MC-60L
X Axis 60”
Y Axis 30” (35”)
Z Axis 28” (38”)
VB-60
X Axis 60”
Y Axis 30”
Z Axis 28”
VB-80
X Axis 80”
Y Axis 35” (40")
Z Axis 26” (34”)

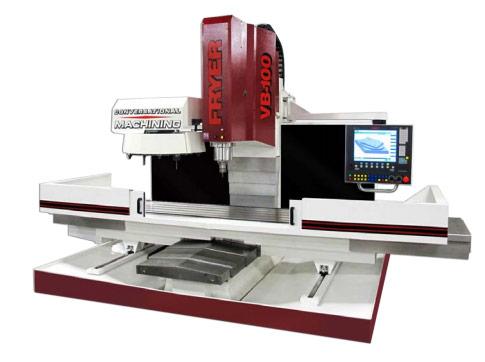

VB-100
X Axis 100”
Y Axis 35” (40")
Z Axis 26” (34”)
VB-120
X Axis 120”
Y Axis 40” (50")
Z Axis 40”
VB-160
X Axis 160”
Y Axis 40” (50")
Z Axis 40”
MB-10Q
32”X 17”Y 19”Z
14” x 50” Table Size
6” Manual Quill
MB-14Q
40”X 20”Y 20”Z
16” x 54” Table Size
6” Manual Quill
MB-16Q
60”X 25”Y 24”Z
18” x 70” Table Size
6” Manual Quill
MB-10R
32”X 17”Y 19”Z
14” x 50” Table Size
8,000 RPM Spindle
MB-14R
40”X 20”Y 20”Z
16” x 54” Table Size
8,000 RPM Spindle
MB-16R
60”X 25”Y 24”Z
18” x 70” Table Size
8,000 RPM Spindle
CM-15
X Travel 15”
Y Travel 10”
Z Travel 15”
Table Size 10” x 32”
CM-20
X Travel 20”
Y Travel 13”
Z Travel 20”
Table Size 12” x 24”
ET-16
16” Swing
Center Distance 40” (60”)
Spindle Bore 2.05”
ET-18
18” Swing
Center Distance 40” (60”)
Spindle Bore 2.05” (3.40”)
ET-21
21” Swing
Center Distance 60” (40”, 80”, 120”)
Spindle Bore 3.40” (4.01”)
ET-25
25” Swing
Center Distance 60” (40”, 80”, 120”)
Spindle Bore 3.40” (4.01”)
ET-30
30” Swing
Center Distance 60” (80”, 120”, 160”, 200”)
Spindle Bore 4.10” (6.1”, 9.0”)
ET-40
40” Swing
Center Distance 60” (80”, 120”, 160”, 200”)
Spindle Bore 4.10” (6.1”, 9.0”)
ET-50
50” Swing
Center Distance 60” (80”, 120”, 160”, 200”, 240”, 280”)
Spindle Bore 6.10” (9”, 10”, 12”, 16”, 20”)
ET-65 / ET-80
65” / 80” Swing
Center Distance 60” (80”, 120”, 160”, 200”, 240”, 280”)
Spindle Bore 6.10” (9”, 10”, 12”, 16”, 20”)
HR-14
X Travel 40”
Y Travel 20”
Z Travel 20”
HR-40
X Travel 40”
Y Travel 29”
Z Travel 25”
HR-70
X Travel 70”
Y Travel 55” (72”)
Z Travel 36”
HR-120
X Travel 120”
Y Travel 55” (72”)
Z Travel (46”) 50”
HR-160
X Travel 160”
Y Travel 55” (72”)
Z Travel 50”
HB-70
X Travel 70”
Y Travel 55” (72”)
Z Travel 36” (46")
HB-120
X Travel 120”
Y Travel 55” (72”)
Z Travel 50”
HB-160
X Travel 160”
Y Travel 55” (72”)
Z Travel 50”
TR-200
X Travel 14”
Y Travel 14”
Z Travel 20”
C Travel 360°
A Travel 0-110°
Table Load (evenly distributed) 4,000lbs.
TR-320
X Travel 20”
Y Travel 16”
Z Travel 22”
C Travel 360°
A Travel 0-120°
Table Load (evenly distributed) 6,000lbs.
TR-600
X Travel 30”
Y Travel 24”
Z Travel 25”
C Travel 360°
A Travel 0-120°
Table Load (evenly distributed) 8,000lbs.
VT-40
Maximum Swing Diameter 40"
Column Travel (X) 24"
Longitudinal Travel (Y) 32" (48")
Maximum Part Weight 8,000 lbs.
VT-60
Maximum Swing Diameter 60"
Column Travel (X) 34"
Longitudinal Travel (Y) 32" (48")
Maximum Part Weight 10,000 lbs.
VT-80
Maximum Swing Diameter 80"
Column Travel (X) 35"
Longitudinal Travel (Y) 32" (48")
Maximum Part Weight 10,000 lbs.
SL-8
Swing Over Bed 20"
Max. Turning Diameter 12"
Working Length 16" (24", 46")
Distance Between Centers 19" (27",51")
Cross Slide Travel (X) 7.5"
Longitudinal Travel (Z) 16" (24", 48")
Bar Capacity 2.0" (3.0")
SL-10
Swing Over Bed 24"
Max. Turning Diameter 14"
Working Length 24" (46", 80")
Distance Between Centers 27" (51",83")
Cross Slide Travel (X) 8.5"
Longitudinal Travel (Z) 24" (46", 80")
Bar Capacity 3.0" (3.6")
SL-12
Swing Over Bed 28"
Max. Turning Diameter 18"
Working Length 24" (46", 80")
Distance Between Centers 27" (51",83")
Cross Slide Travel (X) 11"
Longitudinal Travel (Z) 24" (46", 80")
Bar Capacity (3.6")
HB-70
X Axis Travel 70"
Y Axis Travel 55" (72")
Z Axis Travel 36" (46")
W Travel 20"
Table Size 36" x 80"
Table Load (Evenly Distributed) 10,000 lbs.
HB-120
X Axis Travel 120"
Y Axis Travel 55" (72")
Z Axis Travel 50"
W Travel 20"
Table Size 40" x 126"
Table Load (Evenly Distributed) 10,000 lbs.
HB-160
X Axis Travel 160"
Y Axis Travel 55" (72")
Z Axis Travel 50"
W Travel 20"
Table Size 40" x 165"
Table Load (Evenly Distributed) 10,000 lbs.
HR-14
X Axis Travel 40"
Y Axis Travel 20"
Z axis Travel 20"
Table Size 16" x 54"
Table Load (Evenly Distributed) 3,500 lbs.
HR-40
X Axis Travel 40"
Y Axis Travel 29"
Z axis Travel 25"
Table Size 24" x 51"
Table Load (Evenly Distributed) 6,000 lbs.
HR-70
X Axis Travel 70"
Y Axis Travel 55" (72")
Z axis Travel 36" (46")
Table Size 36" x 80"
Table Load (Evenly Distributed) 10,000 lbs.
HR-120
X Axis Travel 120"
Y Axis Travel 55" (72")
Z axis Travel 50"
Table Size 40" x 126"
Table Load (Evenly Distributed) 10,000 lbs.
HR-160
X Axis Travel 160"
Y Axis Travel 55" (72")
Z axis Travel 50"
Table Size 40" x 165"
Table Load (Evenly Distributed) 10,000 lbs.
