CNC SYSTEMS HONOR Vertical Turning Centers

High Speed Series

VL-46 High Speed CNC Vertical Turning Center

VL-46A
Max. Swing Diameter 22”
X Axis Travel 12.2”
Z Axis Travel 18.1”

VL-46H
Max. Swing Diameter 25.6”
X Axis Travel 12.2”
Z Axis Travel 21.6”

VL-46M
Max. Swing Diameter 22”
X Axis Travel 12.2”
Z Axis Travel 18.1”

VL-66 High Speed CNC Vertical Turning Center

VL-66A
Max. Swing Diameter 31.4”
X Axis Travel 15.6”
Z Axis Travel 29.93”

VL-66H
Max. Swing Diameter 33.4”
X Axis Travel -1.97”/21.6”
Z Axis Travel 27.6”

VL-66M
Max. Swing Diameter 31.4”
X Axis Travel 15.6”
Z Axis Travel 29.93”

VL-86 High Speed CNC Vertical Turning Center

VL-86A
Max. Swing Diameter 39.4”
X Axis Travel 18.5”
Z Axis Travel 33.9”

VL-86H
Max. Swing Diameter 39.4”
X Axis Travel -1.97”/19.69”
Z Axis Travel 33.5”

VL-86M
Max. Swing Diameter 39.4”
X Axis Travel 18.5”
Z Axis Travel 33.9”

VL-100 High Speed CNC Vertical Turning Center

VL-100A
Max. Swing Diameter 52”
X Axis Travel 24.6”
Z Axis Travel 39.4”

VL-100M
Max. Swing Diameter 52”
X Axis Travel 24.6”
Z Axis Travel 39.4”

Heavy Duty Series

VL-66~VL-100C/CM Heavy Duty CNC Vertical Turning Center

VL-66C/CM
X Axis -100+650
Z Axis 600
Max Swing Diameter 850mm (33.4")

VL-86C/CM
X Axis -100+750
Z Axis 600
Max Swing Diameter 950mm (37.4")

VL-100C/CM
X Axis -100+750
Z Axis 700
Max Swing Diameter 1200mm (47.2")

VL-125~VL-250C/CM Heavy Duty CNC Vertical Turning Center

VL-125C/CM
X Axis L 7.87" R 37.40"
Z Axis 35.43"
Max Swing Diameter 1,600mm (63.0")

VL-160C/CM
X Axis L 7.87" R 45.27"
Z Axis 35.43"
Max Swing Diameter 2,000mm (78.7")

VL-200C/CM
X Axis L 11.81" R 57.08"
Z Axis 47.27"
Max Swing Diameter 2,500mm (98.4")

VL-250C/CM
X Axis L 11.81" R 64.96"
Z Axis 47.24"
Max Swing Diameter 3,000mm (118.1")

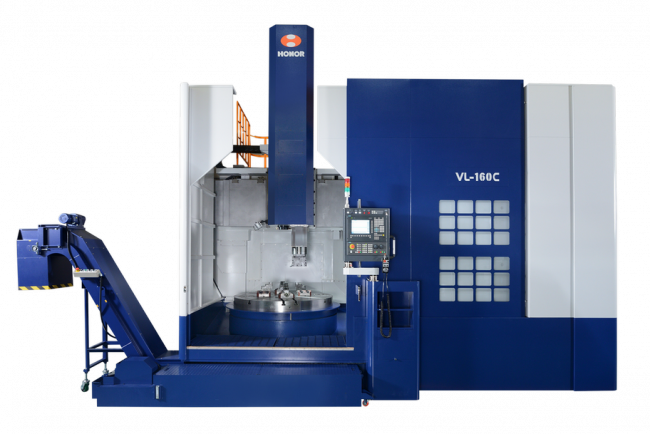

Large Vertical Lathe

VL-300~VL-600C/CM Heavy Duty CNC Vertical Turning Center

VL-300C/CM
Table Diameter 3000 / 118"
Max. Swing diameter 3600 / 141.7"
X axis travel L 11.8" R 78.7"
Z axis travel 59.05"
Cross rail travel 59.05" (9.84"x 6 steps)

VL-400C/CM
Table Diameter 4000 / 157"
Max. Swing diameter 4500 / 177"
X axis travel L 11.8" R 96.45"
Z axis travel 59.05"
Cross rail travel 59.05" (9.84"x 6 steps)

VL-500C/CM
Table Diameter 5000 / 196"
Max. Swing diameter 6000 / 236"
X axis travel L 3.93" R 118.11"
Z axis travel 86.61"
Cross rail travel 70.86" (11.81"x 6 steps)

VL-600C/CM
Table Diameter 6000 / 236"
Max. Swing diameter 7000 / 275"
X axis travel 3.93" R 157.48"
Z axis travel 86.61"
Cross rail travel 70.86" (11.81"x 6 steps)

PL Series

PL-160~350CM

Twin Series

VL-46~100AT/MT Heavy Duty CNC Vertical Turning Center

VL-46
X axis travel 12.2"
Z axis travel (46A) 18.1", (46H) 21.6", (46M) 18.1"

VL-66
X axis travel (66A) 15.6", (66H) -1.97" / 21.6", (66M) 15.6"
Z axis travel (66A) 29.93", (66H) 27.6", (66M) 29.93"

VL-86
X axis travel (86A) 18.5", (86H) -1.97 / 19.69”, (86M) 18.5"
Z axis travel (86A) 33.9", (86H) 33.5", (86M) 33.9"

VL-100
X axis travel (100A) 24.6", (100M) 24.6"
Z axis travel (100A) 39.4", (100M) 39.4"

APC Series

Rotating Pallet

Translating Pallet
