CNC SYSTEMS VISION WIDE High Speed 5-Axis Vertical & Horizontal Machining Centers

5-axis Universal Machining Center

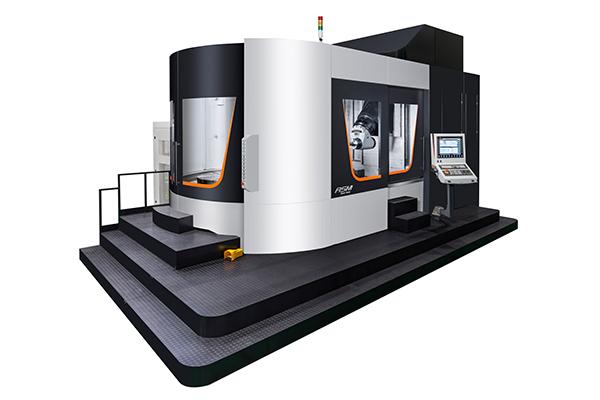

ASM/ASM-FD Series 5-Axis Universal Machining Center

ASM-1012
X travel 1,000mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model FMHD-1000CYFT-EB
Table Diameter ∅1,000mm
Table Load 2,000kg
Universal Head Model M21-45°

ASM-1212
X travel 1,250mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model FMHD-1200CYFT-EB
Table Diameter ∅1,200mm
Table Load 2,000kg
Universal Head Model M21-45°

ASM-1612
X travel 1,620mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model HMCD-1500KY-2CWG1-EB
Table Diameter ∅1,500mm
Table Load 3,000kg
Universal Head Model M21-45°

ASM-1612G
X travel 1,620mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model HMCD-1500KY-2CWG1-EB
Table Diameter ∅1,500mm
Table Load 3,000kg
Universal Head Model G30-45°

ASM-1012 FD
X travel 1,000mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model FMHD-1000CYFT-EB
Table Diameter ∅1,200mm
Table Load 2,000kg
Universal Head Model M21-45°

ASM-1212 FD
X travel 1,250mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model FMHD-1200CYFT-EB
Table Diameter ∅1,200mm
Table Load 2,000kg
Universal Head Model M21-45°

ASM-1612 FD
X travel 1,620mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model HMCD-1500KY-2CWG1-EB
Table Diameter ∅1,500mm
Table Load 3,000kg
Universal Head Model M21-45°

ASM-1612G FD
X travel 1,620mm
Y travel 1,260mm
Z travel 1,050mm
Rotary Table Model HMCD-1500KY-2CWG1-EB
Table Diameter ∅1,500mm
Table Load 3,000kg
Universal Head Model G30-45°

5-axis Machining Center

FA Series 5-Axis Double Column Machining Center

FA-3127
X Travel 3,100mm
Y Travel 2,700mm
Z Travel 1,000/1,200mm
Table Size 3,000mm x 1,800mm

FA-4127
X Travel 4,100mm
Y Travel 2,700mm
Z Travel 1,000/1,200mm
Table Size 3,000/4000mm x 1,800mm

FA-3233
X Travel 3,200mm
Y Travel 3,300mm
Z Travel 1,000/1,200mm
Table Size 3,000mm x 2,450mm

FA-4233
X Travel 4,200mm
Y Travel 3,300mm
Z Travel 1,000/1,200mm
Table Size 4,000mm x 2,450mm

FA-5233
X Travel 5,200mm
Y Travel 3,300mm
Z Travel 1,000/1,200mm
Table Size 5,000mm x 2,450mm

FA-6233
X Travel 6,200mm
Y Travel 3,300mm
Z Travel 1,000/1,200mm
Table Size 6,000mm x 2,450mm

FA-8233
X Travel 8,200mm
Y Travel 3,300mm
Z Travel 1,000/1,200mm
Table Size 8,000mm x 2,450mm

FA + S8 Series

5-axis Composite Material Machining Center

ADM-2638 5-Axis Composite Material Machining Centr

X Travel 2,600mm
Y Travel 3,800mm
Z Travel 1,000mm
Table Size 2,500mm x 1,500mm x 2 pcs.
Max. Table Load 3,000mm

UC Series Ultrasonic Machining Center

UC-4020
X travel mm 4,000mm
Y travel mm 2,000mm
Z travel mm 550mm
Distance from spindle nose to table mm 66- 616
Table Size 4,000mm x 2,000mm

5-face Double Column Machining Center

SM Series High Efficiency Double Column Machining Centers

SM-1613
X Travel 1,600mm
Y Travel 1,300mm
Z Travel 800mm
Table Size 1,800mm x 1,100mm

SM-2113
X Travel 2,100mm
Y Travel 1,300mm
Z Travel 800mm
Table Size 2,300mm x 1,100mm

SM-2613
X Travel 2,600mm
Y Travel 1,300mm
Z Travel 800mm
Table Size 2,800mm x 1,100mm

SM-1618
X Travel 1,600mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 1,800mm x 1,600mm

SM-2118
X Travel 2,100mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 2,300mm x 1,600mm

SM-2618
X Travel 2,600mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 2,800mm x 1,600mm

SM-3118
X Travel 3,100mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 3,300mm x 1,600mm

SE Series High Speed Double Column Machining Centers

SE-1612
X Travel 1,600mm
Y Travel 1,200mm
Z Travel 800mm
Table Size 1,800mm x 1,000mm

SE-2112
X Travel 2,100mm
Y Travel 1,200mm
Z Travel 800mm
Table Size 2,000mm x 1,000mm

SE-2612
X Travel 2,600mm
Y Travel 1,200mm
Z Travel 800mm
Table Size 2,800mm x 1,000mm

SE-1618
X Travel 1,600mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 1,800mm x 1,600mm

SE-2118
X Travel 2,100mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 2,300mm x 1,600mm

SE-2618
X Travel 2,600mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 2,800mm x 1,600mm

SE-3118
X Travel 3,100mm
Y Travel 1,800mm
Z Travel 800mm
Table Size 3,300mm x 1,600mm

SF Series High Efficiency Double Column Machining Centers

SF-2116
X Travel 2,100mm
Y Travel 1,600mm
Z Travel 800mm
Table Size 2,000mm x 1,500mm

SF-2616
X Travel 2,600mm
Y Travel 1,600mm
Z Travel 800mm
Table Size 2,500mm x 1,500mm

SF-3116
X Travel 3,100mm
Y Travel 1,600mm
Z Travel 800mm
Table Size 3,000mm x 1,500mm

SF-4116
X Travel 4,100mm
Y Travel 1,600mm
Z Travel 800mm
Table Size 4,000mm x 1,500mm

SF-2120
X Travel 2,100mm
Y Travel 2,000mm
Z Travel 800mm
Table Size 2,000mm x 1,800mm

SF-2620
X Travel 2,600mm
Y Travel 2,000mm
Z Travel 800mm
Table Size 2,500mm x 1,800mm

SF-3120
X Travel 3,100mm
Y Travel 2,000mm
Z Travel 800mm
Table Size 3,000mm x 1,800mm

SF-4120
X Travel 4,100mm
Y Travel 2,000mm
Z Travel 800mm
Table Size 4,000mm x 1,800mm

SF-2123
X Travel 2,100mm
Y Travel 2,300mm
Z Travel 800mm
Table Size 2,000mm x 1,500mm

SF-2623
X Travel 2,600mm
Y Travel 2,300mm
Z Travel 800mm
Table Size 2,500mm x 1,500mm

SF-3123
X Travel 3,100mm
Y Travel 2,300mm
Z Travel 800mm
Table Size 3,000mm x 1,500mm

SF-4123
X Travel 4,100mm
Y Travel 2,300mm
Z Travel 800mm
Table Size 4,000mm x 1,500mm

SF-2127
X Travel 2,100mm
Y Travel 2,700mm
Z Travel 800mm
Table Size 2,000mm x 1,800mm

SF-2627
X Travel 2,600mm
Y Travel 2,700mm
Z Travel 800mm
Table Size 2,500mm x 1,800mm

SF-3127
X Travel 3,100mm
Y Travel 2,700mm
Z Travel 800mm
Table Size 3,000mm x 1,800mm

SF-4127
X Travel 4,100mm
Y Travel 2,700mm
Z Travel 800mm
Table Size 4,000mm x 1,800mm

NF Series High Efficiency Double Column Machining Centers

NF-3023
X Travel 3,100mm
Y Travel 2,300mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 3,000mm x 2,050mm

NF-3030
X Travel 3,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 3,000mm x 2,050mm

NF-4023
X Travel 4,100mm
Y Travel 2,300mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 4,000mm x 2,050mm

NF-4030
X Travel 4,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 4,000mm x 2,050mm

NF-5023
X Travel 5,100mm
Y Travel 2,300mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 5,000mm x 2,050mm

NF-5030
X Travel 5,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 5,000mm x 2,050mm

NF-6023
X Axis 6,100mm
Y Axis 2,300mm
Z Axis 920mm/1,020mm(OРТ.)
Table Size 6,000mm x 2,050mm

NF-6030
X Travel 6,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 6,000mm x 2,050mm

NF-8023
X Travel 8,100mm
Y Travel 2,300mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 8,000mm x 2,050mm

NF-8030
X Travel 8,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 8,000mm x 2,050mm

NF-10023
X Travel 10,100mm
Y Travel 2,300mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 10,000mm x 2,050mm

NF-10030
X Travel 10,100mm
Y Travel 3,000mm
Z Travel 920mm/1,020mm(OРТ.)
Table Size 10,000mm x 2,050mm

NFT Series

HF Series

HFM Series

VB Series Heavy Duty Double Column Machining Center

VB-2016
X Travel 2,000mm
Y Travel 1,600mm
Z Travel 800/1,020(opt.)
Table Size 2,000mm x 1,300mm
Max. Table Load 8,000kg.

VB-2516
X Travel 2,500mm
Y Travel 1,600mm
Z Travel 800/1,020(opt.)
Table Size 2,500mm x 1,300mm
Max. Table Load 9,000kg.

VB-3016
X Travel 3,100mm
Y Travel 1,600mm
Z Travel 800/1,020(opt.)
Table Size 3,100mm x 1,300mm
Max. Table Load 10,000kg.

VB-2020
X Travel 2,000mm
Y Travel 2,000mm
Z Travel 800/1,020(opt.)
Table Size 2,000mm x 1,700mm
Max. Table Load 9,000kg.

VB-2520
X Travel 2,500mm
Y Travel 2,000mm
Z Travel 800/1,020(opt.)
Table Size 2,500mm x 1,700mm
Max. Table Load 10,000kg.

VB-3020
X Travel 3,100mm
Y Travel 2,000mm
Z Travel 800/1,020(opt.)
Table Size 3,100mm x 1,700mm
Max. Table Load 11,000kg.

VB-4020
X Travel 4,100mm
Y Travel 2,000mm
Z Travel 800/1,020(opt.)
Table Size 4,100mm x 1,700mm
Max. Table Load 12,000kg.

VF Series Heavy Duty Double Column Machining Center

VF-3000
X Travel 3,200mm
Y Travel 2,300mm
Z Travel 920/1,020(opt.)
Table Size 3,200mm x 2,050mm
Max. Table Load11,000kg.

VF-4000
X Travel 4,200mm
Y Travel 2,300mm
Z Travel 920/1,020(opt.)
Table Size 4,200mm x 2,050mm
Max. Table Load 13,000kg.

VF-5000
X Travel 5,200mm
Y Travel 2,300mm
Z Travel 920/1,020(opt.)
Table Size 5,200mm x 2,050mm
Max. Table Load 15,000kg.

VF-3026
X Travel 3,200mm
Y Travel 2,600mm
Z Travel 800/1,020(opt.)
Table Size 3,200mm x 2,050mm
Max. Table Load 11,000kg.

VF-4026
X Travel 4,200mm
Y Travel 2,600mm
Z Travel 800/1,020(opt.)
Table Size 4,200mm x 2,050mm
Max. Table Load 13,000kg.

VF-5026
X Travel 5,200mm
Y Travel 2,600mm
Z Travel 800/1,020(opt.)
Table Size 5,200mm x 2,050mm
Max. Table Load 15,000kg.
