The WRD 170/200 machine is the largest and heaviest representative of floor-type machine with linear guide in the manufacturing portfolio of TOS VARNSDORF a.s. The machines are designed for precise coordinate drilling, boring, milling and thread cutting. WRD 170/200 is suitable for machining of box- and plate-type workpieces and complicated workpieces from cast iron, steel cast-iron, steel and other machinable materials, mainly large as well as the largest sizes up to 150 tons. The machine can be supplemented with a series of technological devices, which greatly extend the machines flexibility.

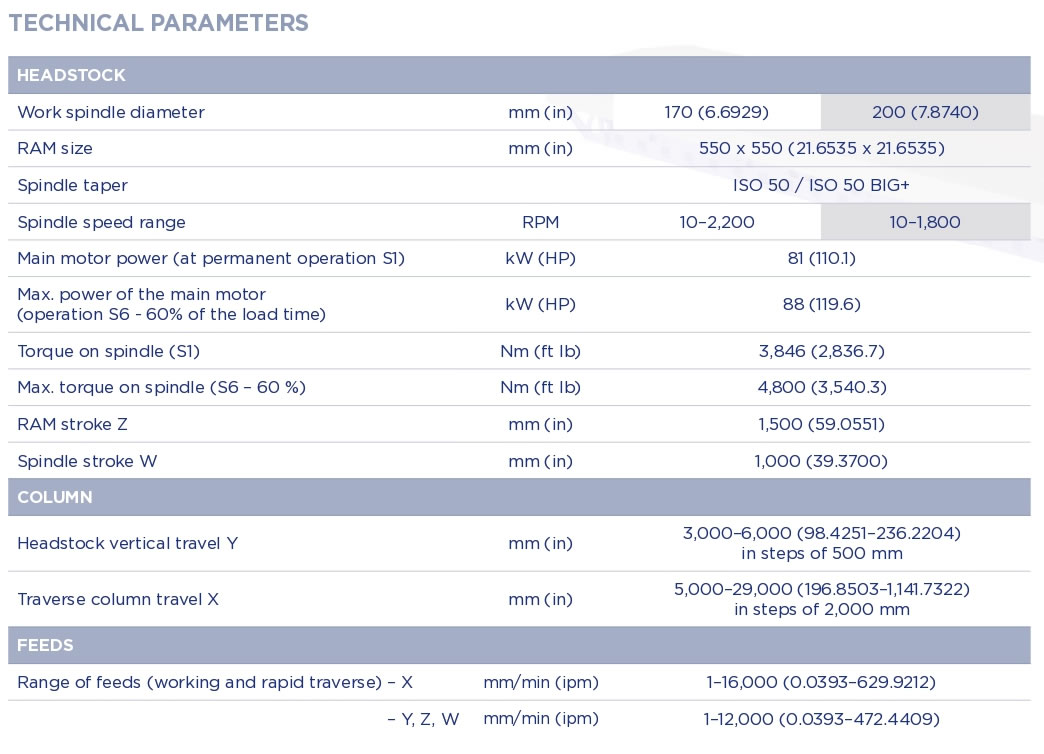

- Work Spindle Diameter: 170mm (6.7") / 200mm (7.8")
- Spindle Speed Range: WRD 170- 2,200 RPM / WRD 200- 1,800 RPM
- RAM Size: 550 x 550mm (21.6 x 21.6")
- RAM Stroke Z Travel: 1,50mm (59")
- X Travel-Column Traverse: 5,000- 29,000 Plus (196" – 1,141") in 2,000mm increments
- Y Travel-Headstock Vertical Travel: 3,000 – 6,000mm (118" – 236") in increments of 500mm
- W Travel-Spindle Stroke: 1,00mm (39.3")
- Optional Accessories: Rotary Tables, Floor Plates, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc.
