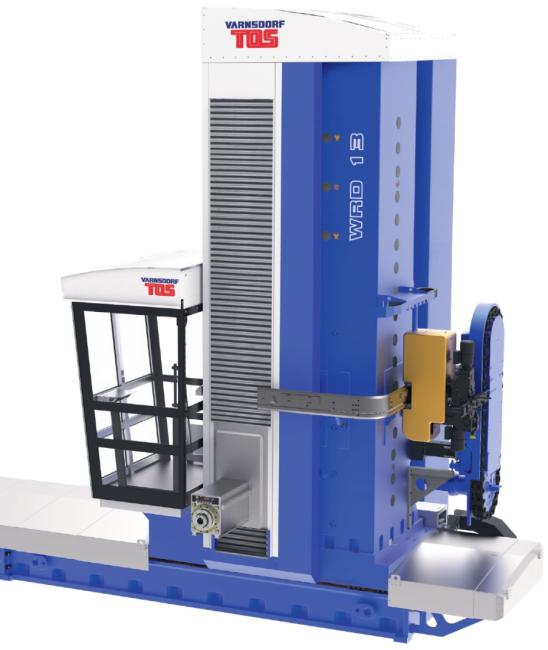

The WRD 13 horizontal floor-type boring machine with a RAM and a work spindle is based on the original generation of CNC horizontal milling and boring machines WHN 13 produced by TOS VARNSDORF the headstock and the column are identical with the WHR 13 machine. The drive in the X axis is the Master & Slave system. Three linear guides in the X axis secure perfect accuracy when machining and high speed traverse up to 21,000 mm/min.

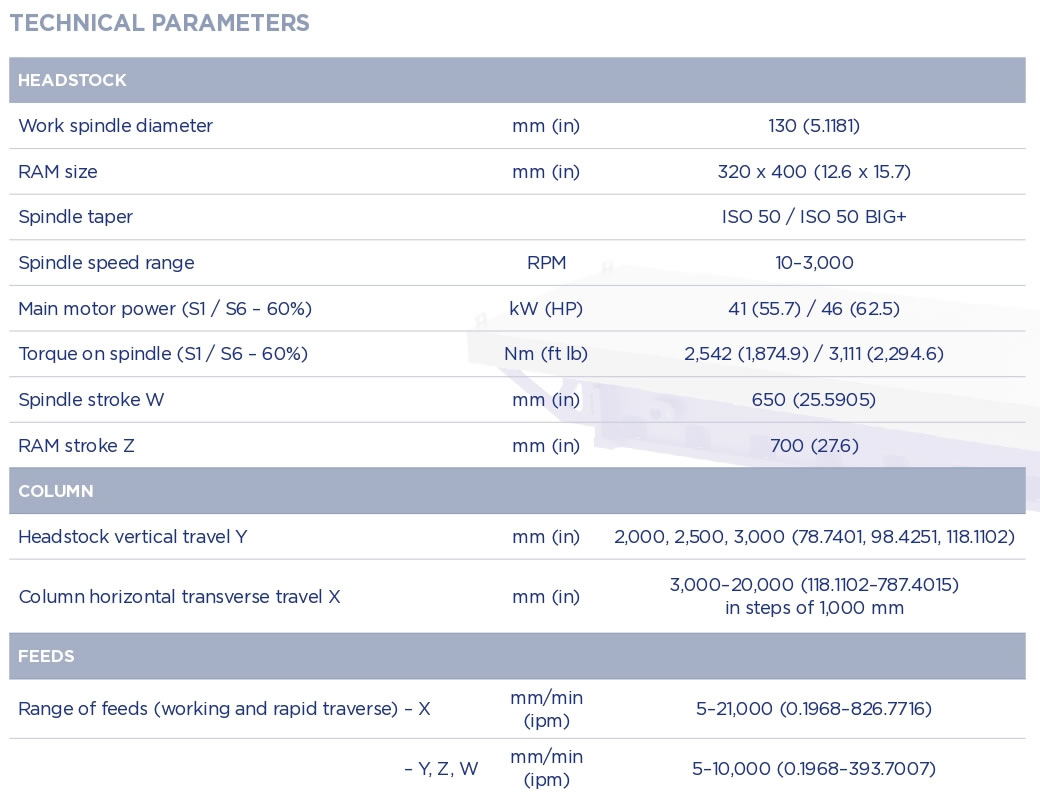

- Work Spindle Diameter: 130mm (5.11")
- Spindle Speed Range: 10-3,000 RPM
- RAM Size: 320 x 400mm (12.6 x 15.7")
- RAM Stroke Z Travel: 700mm (27.6")
- X Travel-Column Traverse: 3,000- 20,000 (118" – 787") in 1,000mm increments
- Y Travel-Headstock Vertical Travel: 2,000 / 2,500 / 3,000mm (78" / 98" / 118")
- W Travel-Spindle Stroke: 650mm (25.6")
- Optional Accessories: Rotary Tables, Floor Plates, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc.
