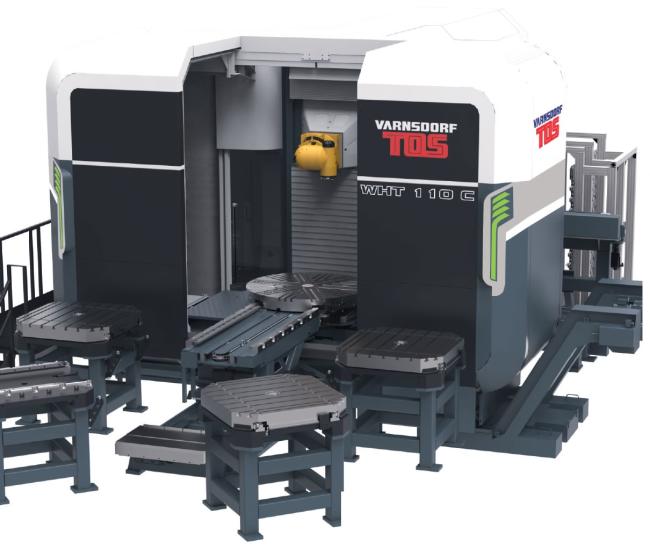

The new high-performance WHT 110/130 is a horizontal machine tool suitable for the most demanding operations that require precise drilling, gear cutting, turning operations or milling.
WHT 110/130 machines may be designed as machining centres with a wide choice of accessories, e.g., automatic change of technological palletes, tools, special accessories, turning tables, and a range of other options that will satisfy the needs of the most demanding applications in areas such as the aerospace industry, power industry, mining industry, oil industry, and engineering industry. These "multi-tasking machines are suitable both for the single-piece and the batch production.

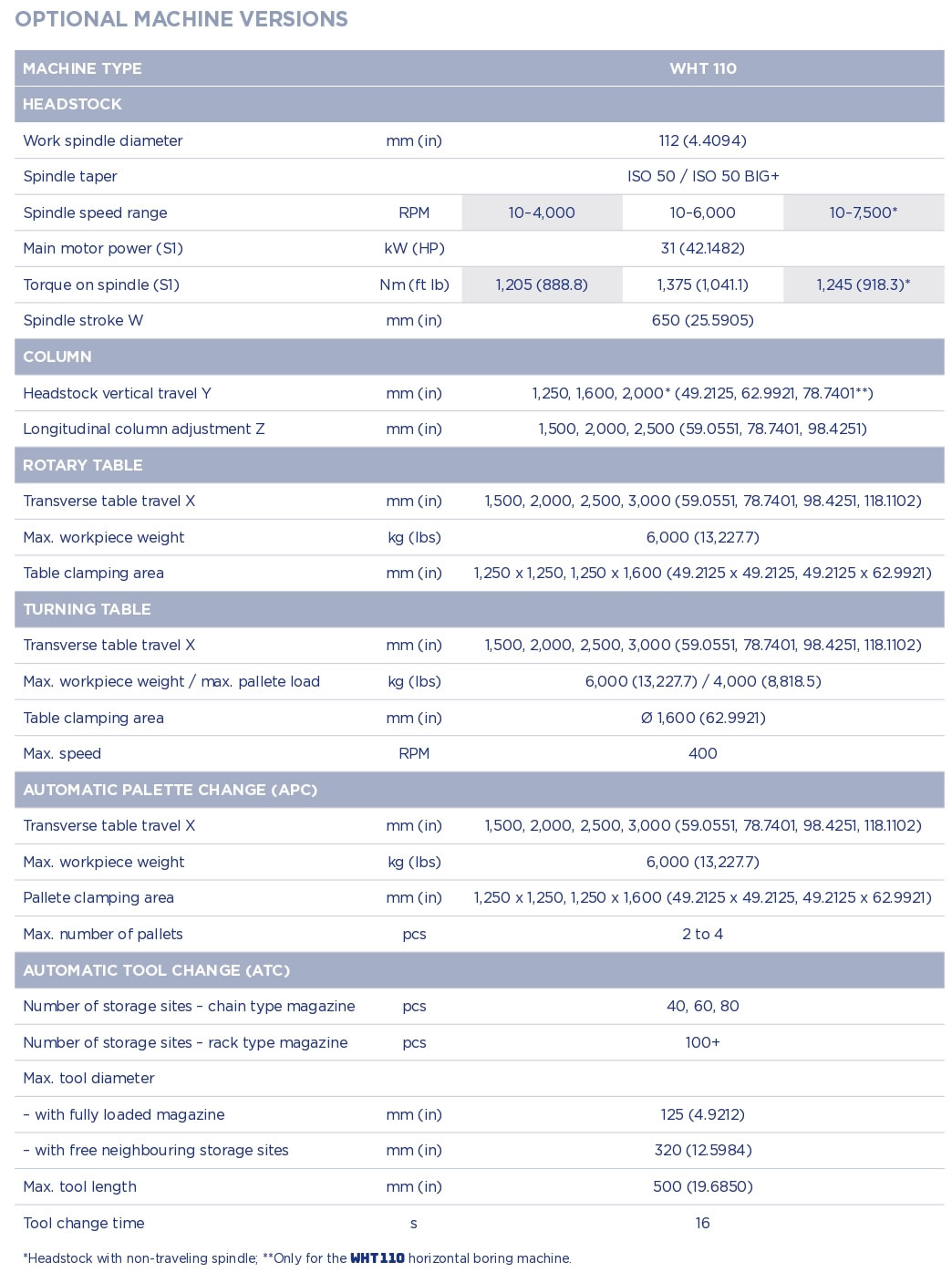

- Work Spindle Diameter: 112 (4.4")
- Spindle Speed Range: 4,000 RPM / 6,000 rpm / 7,500* (no travelling spindle)
- X Travel-Table Traverse: 1,500 / 2,000 / 2,500 / 3,000mm (59" / 78" / 98" / 118")
- Y Travel-Headstock Vertical Travel: 1,250 / 1,600 / 2,000mm (49" / 63" / 78")
- Z Travel- Longitudinal Column Travel: 1,500 / 2,000 / 2,500mm (59" / 78" / 98")
- W Travel-Spindle Stroke: 650mm (25.6")
- Table Clamping Area: 1,250 x 1,250mm (49" x 49") / 1,250 x 1,600mm (49" x 63")
- Max Workpiece Weight: 6,000kg (13,227 lbs.)
- Turning Table: 1,600 Diameter (63"), 400 RPM
- Pallet Changer, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
