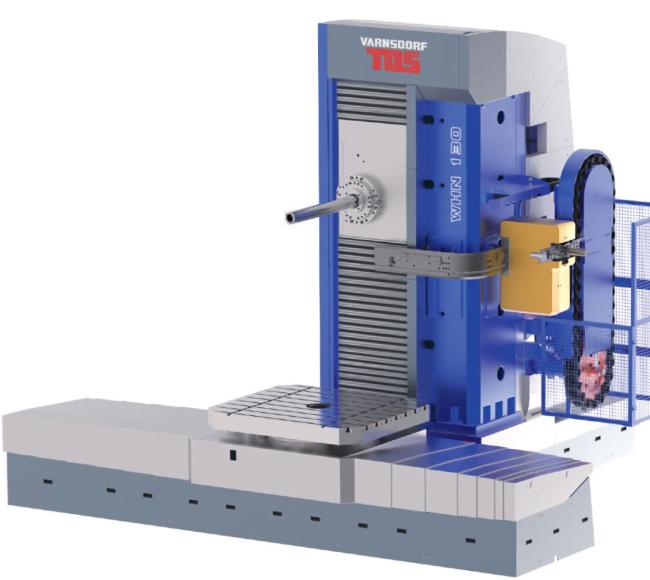

The horizontal boring and milling machines WHN 130 is powerful, efficient representatives of the TOS VARNSDORF advanced generation, which responds to the needs of modern progressive technology.
The machine is produced in a cross arrangement of the beds, with a longitudinally adjustable column, a traveling spindle and cross-wise moveable rotary table.

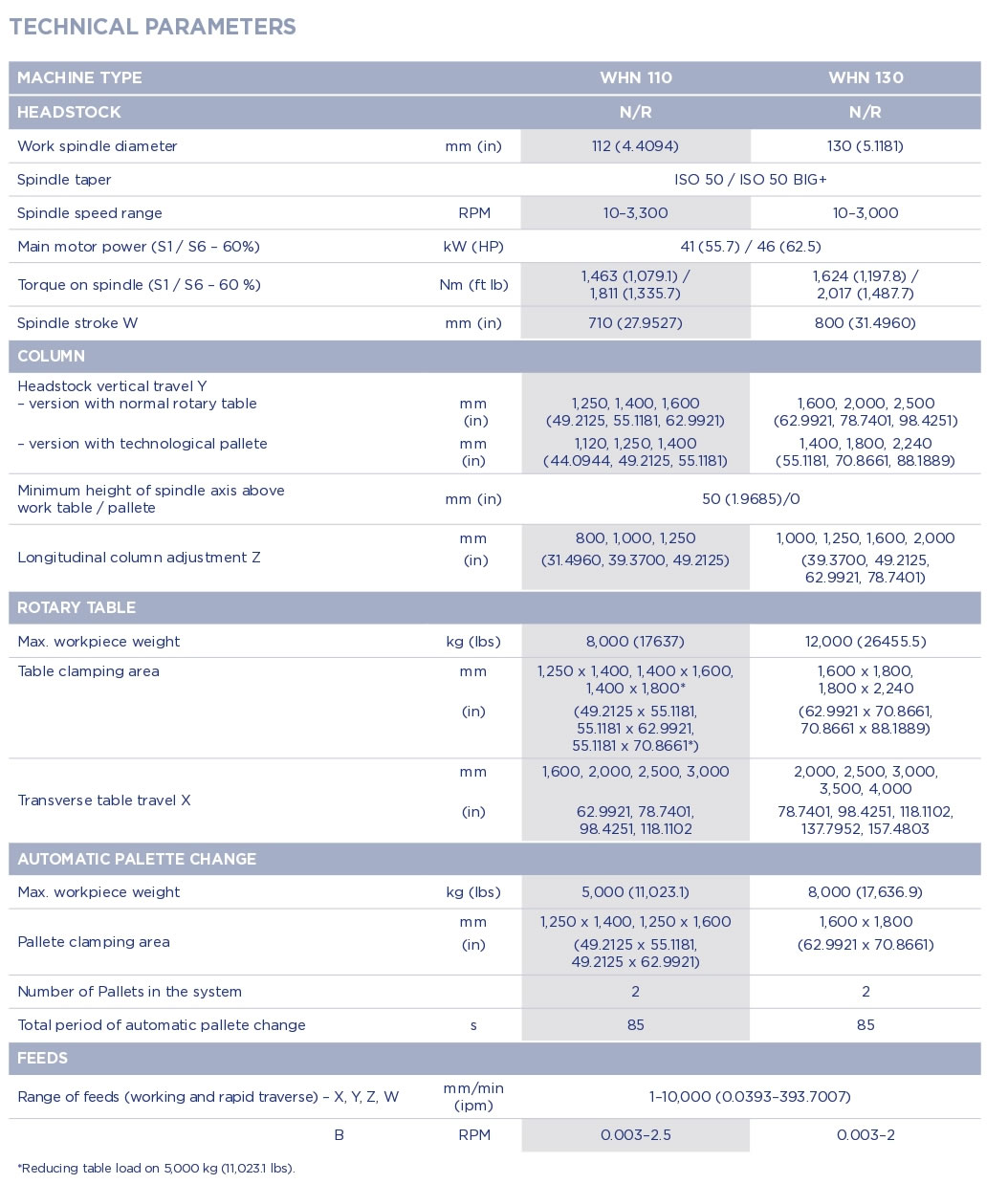

- Work Spindle Diameter: 130 (5.11")
- Spindle Speed Range: 10-3,000 RPM
- X Travel-Table Traverse: 2,000 / 2,500 / 3,000 / 3,500 / 4,000mm (78" / 98" / 118" / 137 / 157")
- Y Travel-Headstock Vertical Travel: 1,600 / 2,000 / 2,500mm (63" / 78" / 98")
- Z Travel- Longitudinal Column Travel: 1,000 / 1,250 / 1,600 / 2,000mm (39" / 49" / 63" / 78")
- W Travel-Spindle Stroke: 800mm (31.5")
- Table Clamping Area: 1,600 x 1,800mm (63" x 70") / 1,800 x 2,240mm (70" x 88")
- Max Workpiece Weight: 12,000kg(26,455 lbs.)
- Pallet Changer, Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
