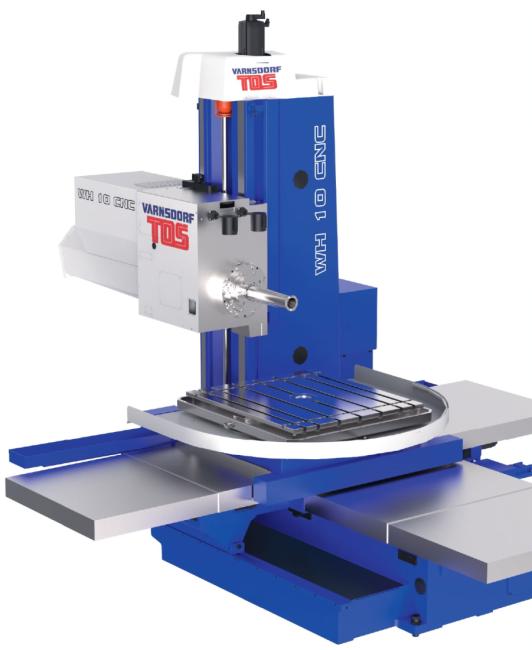

WH 10 CNC is a horizontal table-type boring machine with travelling work spindle 100 mm in diameter and maximum weight capacity of the table 3,000 kg. This is the smallest machine in the TOS VARNSDORF range.
The optimally dimensioned structure from grey cast-iron consists of a Fixed Column and a longitudinal bed with a cross moving Rotary Table. Thanks to a rigid structure excellently absorbing vibrations, sufficiently dimensioned drives and accurate guides, the machine is designed for universal cutting operations of Prismatic parts, light workpieces from cast iron, cast steel and steel including technologically demanding operations. The machine can be extended by special equipment, peripheral devices and special technological equipment (e.g. spindle supports, facing head, milling heads, chucking equipment, etc.).

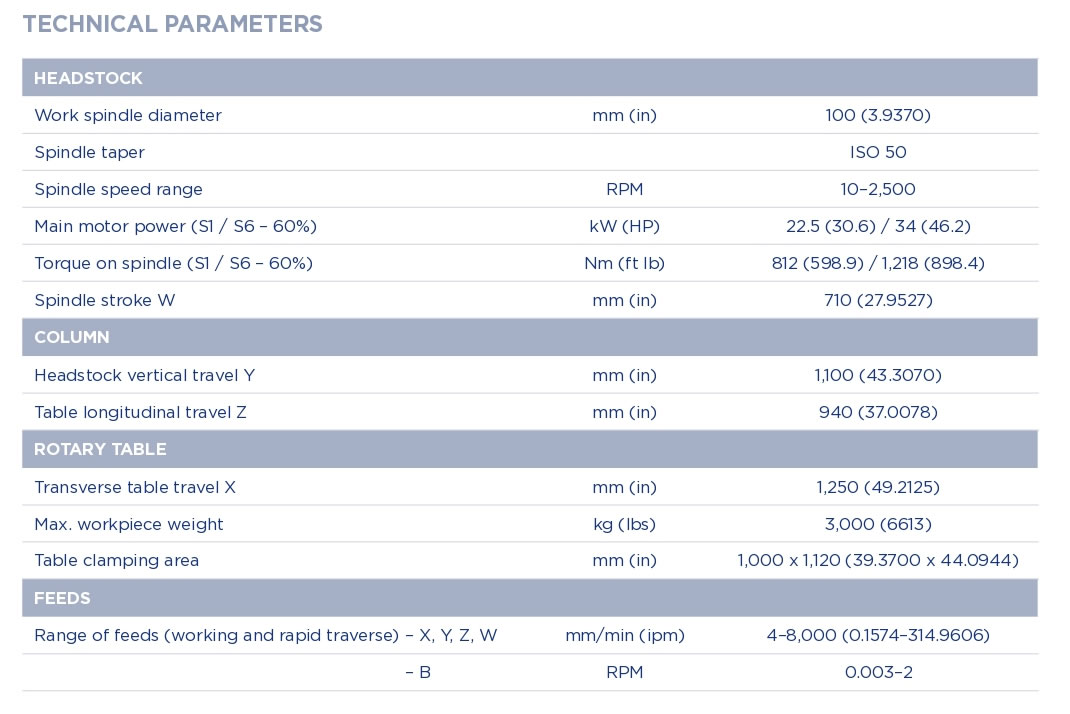

- Work Spindle Diameter: 100mm (3.93”)
- Spindle Speed Range 10-2,500 RPM
- X Travel-Table Traverse: 1,250mm (49”)
- Y Travel-Headstock Vertical Travel: 1,100mm (43”)
- Z Travel- Longitudinal Table Travel: 940mm (37”)
- W Travel-Spindle Stroke: 710mm (27.95”)
- Table Clamping Area: 1,000 x 1,120mm (39”x44”)
- Max Workpiece Weight: 3,000kg (6,613 lbs.)
- Optional Accessories: Angle Plates, Clamping Cubes, Milling Heads, Facing Heads, Automatic Tool Changers, Pickup Stations for Automatic Exchange of Special Accessories, Etc
