The additional work tables with horizontal adjustment are designed as special accessory for horizontal floor-type boring machines (the WRD series) and adaptable for machines by other manufacturers.

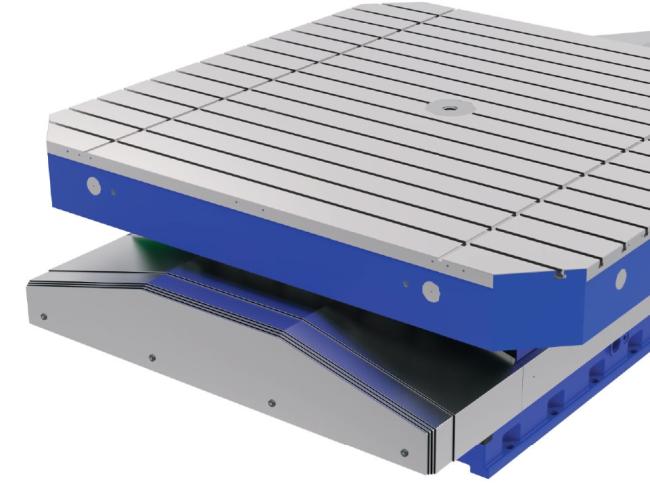

The additional turning tables with horizontal adjustment consist of a rigid bed on the top of which a table with horizontal attachment area rotationally housed on the rail usually travels.
The CNC-controlled table is used for attachment and positioning of workpieces on the technological sites and can be multiply applied. It allows interpolation in the longitudinal axis, in the rotational axis and both axes simultaneously with other continuously controlled axes of the corresponding machine.
The control of the supplementary tables and the servo drives are integrated in the CNC control, operation and electrical equipment of the machine. The position in the coordinates is programmed with the increment of 0.001°.
The B coordinate is driven by the Master & Slave system, which incorporates two separate servo drives and their control.
